Helmet Strength of Retention System Tester For NIJ 0104.02 GA294-2012 DOT218 Test

Brand Name : ZL

Model Number : ZL-1813

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 50 Sets

Delivery Time : 5-8 work days

Packaging Details : Helmet Strength of Retention System Tester For NIJ 0104.02 GA294-2012 DOT218 Test is packaged within wooden case.

Product name : Motorcycle Helmet Wearable Device Strength Tester

Working power : AC220V, 50Hz

The force value range : 0 ~ 2000N, accuracy 1%.

The displacement range : 0-99min, precision 0.1s.

Man-made chin : The diameter of the rigid shaft is 25mm, the distance between the two axes is 75mm, and the shaft length is 50mm.

The beam speed : 0-500mm/min when no load, infinitely variable speed can be adjusted. Easy and quick adjustment of position according to helmet.

Model : ZL-1813

Name : Helmet Strength of Retention System Tester For NIJ 0104.02 GA294-2012 DOT218 Test

Contact Now

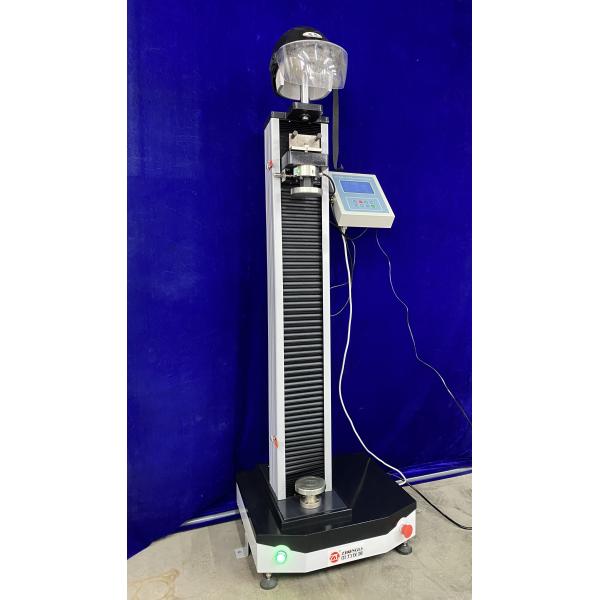

Helmet Strength of Retention System Tester
Comprehensive testing equipment designed for evaluating helmet retention system strength according to NIJ 0104.02, GA294-2012, DOT218, and other international safety standards.
Key Features
  • Single column host structure with linear vertical movement
  • Large tether stretching stroke up to 500mm for accurate deformation measurement
  • Automatic initial load setting and deformation collection without manual zeroing
  • Touch screen + PLC + specialized test program control system
  • Automatic speed control and program adjustment based on test conditions
  • 30S or 120S fixed force value hold with automatic closed-loop control
  • Real-time display of force value, time, displacement, deformation, speed, and test curves
Technical Specifications
Model ZL-1813
Force Range 0 to 2000N, accuracy 1%
Displacement Range 0-500mm, accuracy 0.1mm
Timing Range 0-99min, accuracy 0.1s
Artificial Chin Rigid shaft diameter 25mm, distance between shafts 75mm, shaft length 50mm
Crossbar Speed 0-500mm/min at no load, infinitely variable speed; automatic switching between 113N/min (Category A) and 75N/min (Category B)
Working Power AC220V, 50Hz
Download Safety Helmet Testing Machine Catalog
Result Determination Criteria
According to GB811-2010 motorcycle helmet standards, the helmet wearing device strength performance must meet: No elongation exceeding 25mm, and no lacing tear, connecting pieces detachment, or buckle loosening phenomena.
Compliance Standards
NIJ 0104.02, GA294-2012, DOT218, GB811-2010, ECE, EN, ASTM, JIS, SNELLM2015, AS/NZS 2063. Customizable testing protocols available for all listed standards.
Helmet Strength of Retention System Tester For NIJ 0104.02 GA294-2012 DOT218 Test Helmet Strength of Retention System Tester For NIJ 0104.02 GA294-2012 DOT218 Test
